Ultimatte Smart Remote 4
Technical Specifications
Description

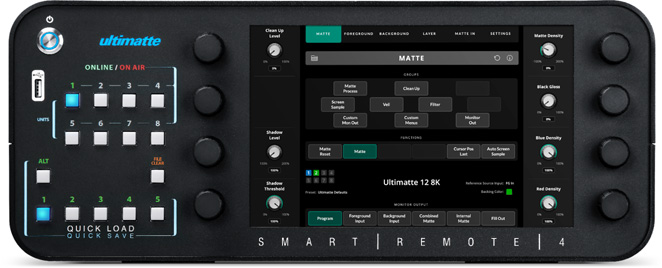

Now you can control up to 8 different Ultimatte 12 units at the same time via Ethernet. Smart Remote 4 features a 10.1 inch touchscreen for quickly navigating menus and adjusting settings, along with hard buttons with online and on air indicators for quickly switching between units. The file clear button automatically adjusts the most important settings to instantly give you incredible composites!

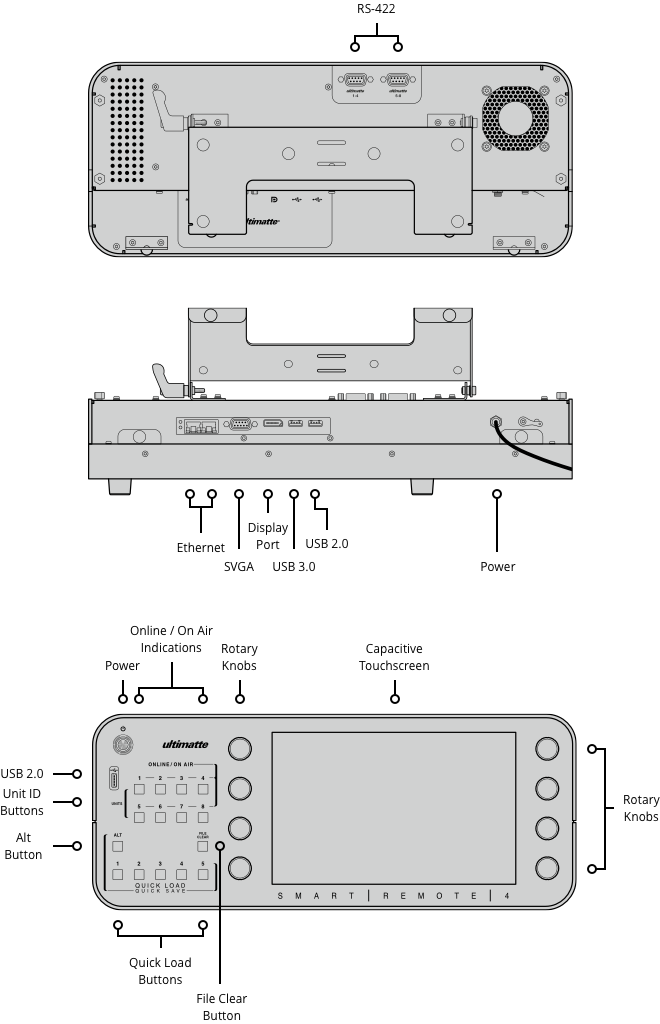

Connections
Software Updates
2 x USB 2.0 and 1 x USB 3.0 for software updates.
SVGA and Display Port Outputs
SVGA and Display Port outputs allows for graphics to be viewed on an external monitor.
Ethernet
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422
2 x for controlling Ultimatte 11.
Product Specifics
Rotary Knobs
8 x rotary knobs for adjusting parameters.
Unit ID Buttons
8 x buttons. Illuminated blue for active.
Unit ID LED Indicators
Illuminated green for online and red for on air.
Alt + Quick Load/Save Buttons
Alt button plus 5 buttons for saving presets.
Quick Load/Save Buttons
5 x buttons for loading presets.
File Clear Button
1 x button for Auto Key.
Alt + File Clear
Alt button plus file clear button for Auto Key using some user defined presets.
Customizable Menus
4 x menus for building your own menu with your most used controls.
LED Control
User adjustable brightness control for LEDs.
Fan Speed Control
User adjustable.
Software
Software Updates
Software updates via USB to load Smart Remote utility.
Control
Touchscreen
10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Operating Systems
Windows 10, 64-bit.
Power Requirements
Power Supply
100 - 240V AC.
Power Usage
24W
Physical Installation
Adjustable desk mounting option.

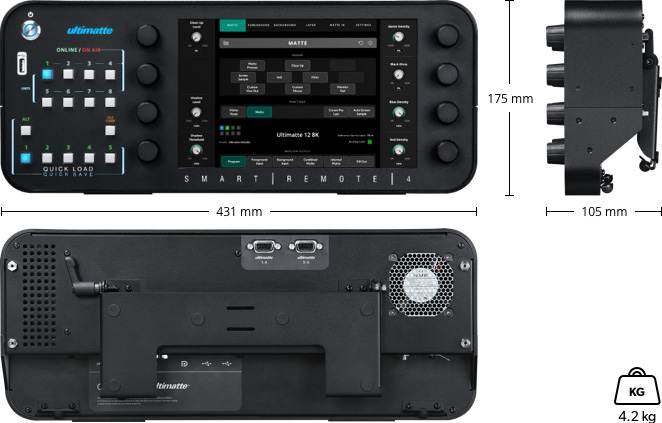

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 35°C (32° to 95°F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing.
What's Included
Ultimatte Smart Remote 4
Welcome wallet with QR code for software download
Warranty
12 Month Limited Manufacturer's Warranty
