ATEM Camera Control Panel
Technical Specifications
Description
The ATEM Camera Control Panel provides independent controls for up to 4 URSA Mini, URSA Broadcast, Blackmagic Studio and Micro Studio cameras from a single control panel. You get iris control, shutter speed, white balance, master gain, pedestal, RGB controls for white and black, and more.

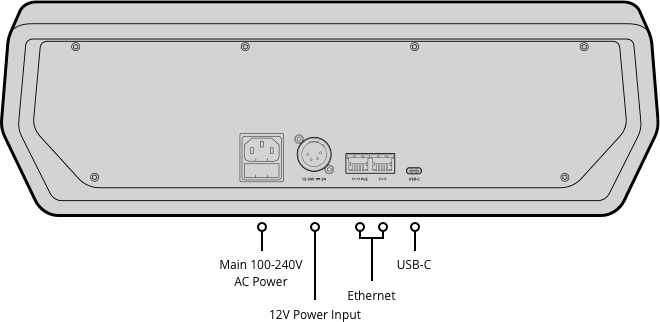

Connections
Ethernet
2 x 10/100/1000 BaseT with loop
output for additional control panels or computers.
Software Updates
1 x USB-C for firmware updates.
Product Specifics
LCD Menu Displays
4
Camera Number Display
Green off air, red on air.
Setup
White and black balance setup.
3 Axis Joystick
4
Preview Button
4
Iris Control
Auto Iris On, Coarse control.
Panel Active
Protects settings.
Software
Software Applications
ATEM Software Control Panel.
Power Requirements
Input Voltage
1 x Internal 100 - 240V AC.
DC Power
12-30V 3A.
Redundant Power
Yes
Power Usage
30W
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
Up to 95%
What's Included
ATEM Camera Control Panel
Warranty
12 Month Limited Manufacturer's Warranty.
