ATEM Production Studio 4K
Technical Specifications
Description
ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.
Connections
Total Video Inputs
8
Total Video Outputs
6
SDI Rates
270Mb, 1.5G, 3G, 6G.
Total Audio Inputs
2 x XLR. 2 x RCA.
Total Audio Outputs
2 x XLR Program.
Timecode Connections
None
SDI Video Inputs
4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
HDMI Video Input
4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
SDI Audio Outputs
2 channel embedded into SDI output.
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 8 inputs.
SDI Program Outputs
1 x 10-bit SD/HD/Ultra HD 4K switchable.
HDMI Program Outputs
1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
Down Converted SDI Program Outputs
1 x 10-bit HD (Ultra HD 4K to HD).
SDI Aux. Output
1
Total Multi Views
1
SDI Multi View Outputs
1
HDMI Multi View Outputs
1
Control Panel Connection
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
1080i50, 1080i59.94
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 424M.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
HDMI Input Resolutions for Computers
720 x 480i 59.97Hz,
720 x 576i 50Hz,
1280 x 720 59.94Hz,
1280 x 720 50Hz,
1920 x 1080 59.94Hz,
1920 x 1080 50Hz,
3840 x 2160 23.98Hz,
3840 x 2160 24Hz,
3840 x 2160 25Hz,
3840 x 2160 29.97Hz.
Colorspace Conversion
Hardware based real time.
Processing Delay
1 Line.
Audio Mixer
10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring.
4K to HD Down Conversion
Yes, program x 1.
Product Specifics
Upstream Keyers
1 with Chroma/Linear/Luma key.
Downstream Keyers
2
Chroma Keyers
1
Talkback Support
None
Mix Minus Support
None
Linear/Luma Keyers
3
Transition Keyer (Stinger/DVE)
None
Total Number of Layers
4
Pattern Generators
3
Color Generators
2
DVE with 3D Borders & Drop Shadow
None
Display interface
Minimum monitor resolution of
1366 x 768.
Number of Windows
1 x 10
Routable Windows
8
Tally
Red for program and green for preview indication.
Windows Source Labels
Yes
Control Panel
Software or optional hardware panel.
Media Player
Media Player
2
Media Pool Still Image Capacity
20 with fill and key.
Media Pool Clip Capacity
None
Media Player Clip Length in 720 HD
None
Media Player Clip Length in 1080 HD
None
Media Player Clip Length in Ultra HD
None
Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format
None
Media Pool Audio File Format
None
Channels
Fill and key for each Media Player.
Multi View Monitoring
Multi View Monitoring
1 x 10 Views.
Multi View Video Standard
HD.
Display
Interface
Minimum monitor resolution of 1366 x 768.
Front Panel
Built in LCD monitor for video and 42 LED buttons for Aux switching.
Software
Control Panel Included
ATEM Software Control Panel included free for Mac 10.10 Yosemite, Mac 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit.
Tally Output
Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
Software Updates
Using USB connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC.
Power Usage
60W

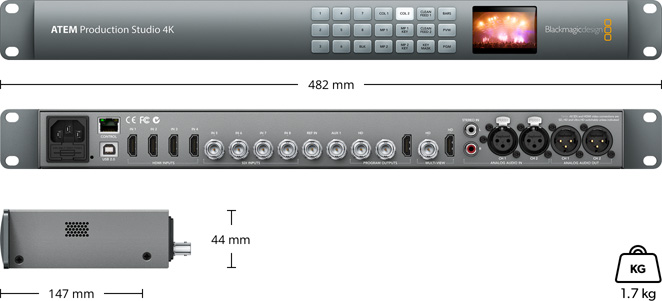

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 95% non-condensing
What's Included
ATEM Production Studio 4K
Welcome wallet with QR code for software download
Warranty
12 Month Limited Manufacturer's Warranty.
