ATEM Studio Converter
Technical Specifications
Description
ATEM Studio Converter is the ideal partner for the ATEM Camera Converter. Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback! Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters. Multiple Studio converters can be cascaded together when more than 4 cameras are needed.
Connections
SDI Video Input
1 x 10 bit SD/HD switchable program input
from switcher, including tally information.
SDI Video Output
4 x 10 bit SD/HD switchable camera outputs.
1 x 10 bit SD/HD switchable program loop thru output connects to another ATEM Studio Switcher.
Talkback Audio
Aviation Headsets with 0.25" TRS headset
connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.
Analog Audio
1 x stereo RCA monitoring output.
AES/EBU Audio Input
1 x combined headphone input. 1 x combined
microphone input. Combined inputs for connecting to other ATEM Studio Converters.
AES/EBU Audio Output
1 x combined headphone output. 1 x combined
microphone output. Combined outputs for connecting to other ATEM Studio Converters.
Balanced XLR Audio Output
4 x camera stereo analog audio outputs.
Optical Fiber Video Input
4 x single mode SD/HD switchable
camera inputs with LC connector.
Optical Fiber Video Output
4 x single mode SD/HD switchable
camera outputs with LC connector.
Optical Fiber Audio Input
1 x single mode camera
audio inputs with LC connector.
Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Optical Fiber Audio Output
1 x single mode camera
audio outputs with LC connector.
Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Computer Interface
1 x mini-B type USB 2.0 connector for firmware updates.
Standards
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support
2160p24
SDI Compliance
SMPTE 259M, SMPTE 292M,
296M, 372M, 424M Level B, 425M.
Audio Sampling
Television standard sample
rate of 48Khz, 24 bit A/D conversion.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
Multiple Rate support
SDI switches between SD, HD, and UHD.
Software
Software Included
Converter Utility for firmware update.
Operating Systems
Mac 10.11 El Capitan, Windows 8.1 and 10.
Mac 10.12 Sierra or later.
Power Requirements
Power Supply
100 - 240 V AC input with redundant 12 - 31V DC input.

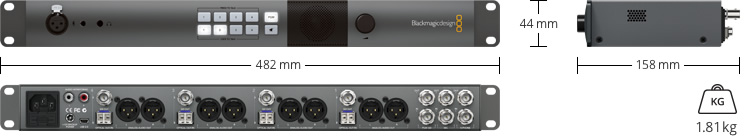

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
ATEM Studio Converter
Welcome wallet with QR code for software download
Warranty
3 Year Limited Manufacturer's Warranty.
Excluding connectors, cables, cooling fans, fiber optic modules, fuses and keyboards which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
