Micro Converter HDMI to SDI 12G
Technical Specifications
Description
The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger!

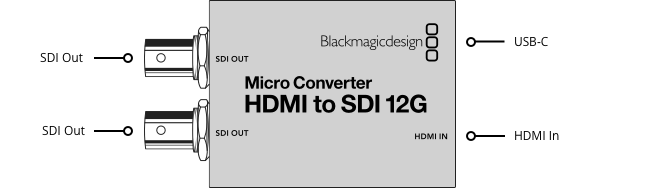

Connections
SDI Video Outputs
2
Automatically matches the HDMI input.
HDMI 2.0 Video Outputs
1 x type A.
SDI Rates
270Mb, 1.5G, 3G, 6G, 12G.
Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K.
Updates, Configurations and Power
USB Type‑C.
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
SDI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI.
HDMI Video Standards
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
HDMI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
HDMI Color Space
YUV
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources.
Always confirm copyright ownership before capture or distribution of content.
Settings Control
Via MacOS™ and Windows™ software utility connected by USB.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Software
Internal software upgrade via USB.
Power Requirements
Power Consumption
4W max.
Operational Voltage Range
4.4V to 5.25V DC

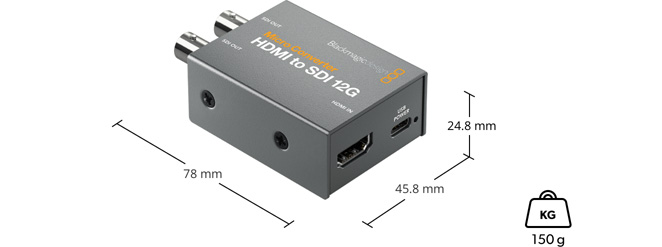

Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Micro Converter HDMI to SDI 12G
Warranty
3 Year Limited Manufacturer's Warranty.
