Mini Converter SDI to Audio
Technical Specifications
Description
The perfect way to de‑embed audio from any SDI source in SD and HD formats up to 1080p60! Audio is output on ¼" connectors for balanced analog and AES/EBU audio output to equipment such as mixers, analog decks, audio monitors and more. Mini Converter SDI to Audio is the ideal SD/HD SDI audio de‑embedder for when you don’t need the cost of the Ultra HD model!

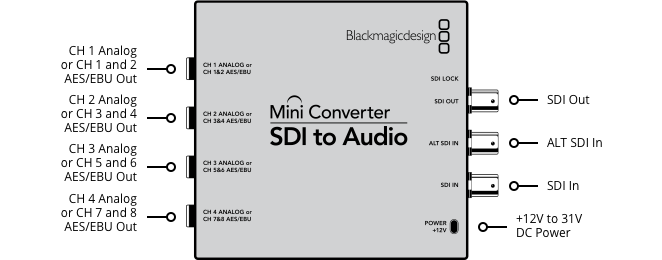

Connections
SDI Video Inputs
1 x SD, HD or 3G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Video Outputs
1 x SDI Loop Output.
Analog Audio Outputs
4 channels of professional balanced analog audio.
Digital Audio Outputs
8 channels of professional balanced AES/EBU audio.
SDI Redundant Inputs
Automatically switches over if main SDI input is lost.
Multi Rate Support
Auto detection of SD, HD or 3G‑SDI.
Updates and Configuration
Via USB 2.0 high speed. (480 Mb/s)
Reclocking
Yes
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M level B, SMPTE 425M level B, ITU‑R BT.656 and ITU‑R BT.601
SDI Video Rates
SDI video inputs are automatically detected between standard definition, high definition and level B 3G‑SDI.
SDI Video Sampling
4:2:2, 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision
4:2:2, 4:4:4
SDI Color Space
YUV, RGB
SDI Auto Switching
Automatically selects between SD, HD, and 3G‑SDI.
Software
Software Control
Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
5.52 Watts
Operational Voltage Range
12 ‑ 15V DC

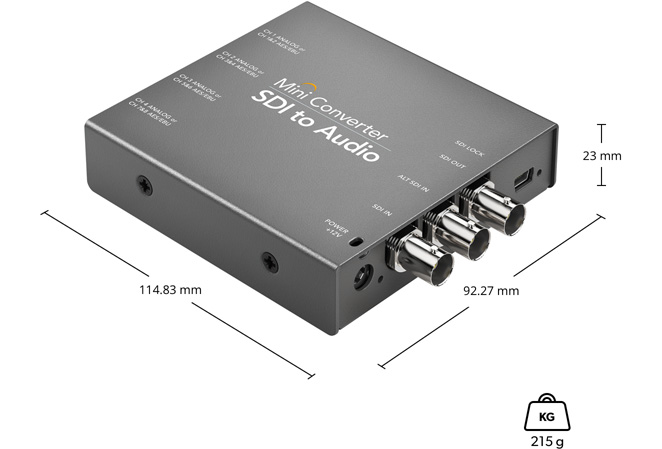

Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Mini Converter SDI to Audio
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
