Fairlight Console Channel Fader

Technical Specifications

Description

Fairlight Console Channel Fader gives you full mixing and automation control with 12 touch sensitive motorized faders, pan knobs, tally buttons and LCD displays for each channel, as well as automation controls and bank buttons for mapping tracks and buses to the faders! The faders are sculpted and weighted for comfort and feature smooth gliding, high precision motors that provide the sensitivity and feedback you need for the most sophisticated mixing sessions! Each channel strip features an LED display for track status along with mute, solo, call and automation buttons, and a customizable soft knob for panning.

Connections

Ethernet

Ethernet supports 10/100/1000 BaseT.

Updates and Configuration

1 x USB Type‑C for software configuration and software updates.

Software

Internal software upgrade via updater application.

Settings Control

Fairlight Studio and Console setup utility software when connected by USB.

Power Requirements

Power Supply

Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.

Power Usage

20W max.

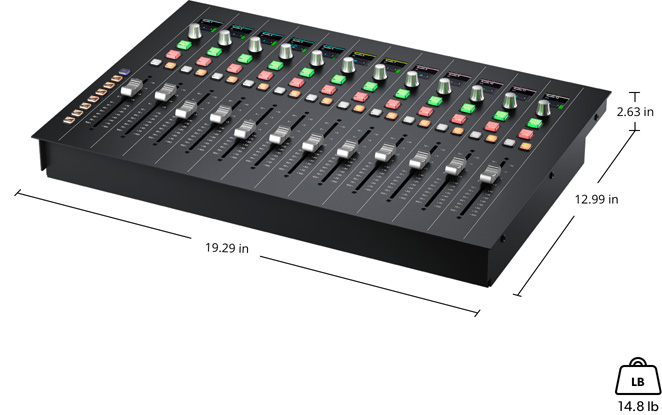

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Fairlight Console Channel Fader

Warranty

1 Year Limited Manufacturer's Warranty.
