Fairlight Desktop Console

Technical Specifications

Description

Fairlight Desktop Console is an audio mixing control surface that allows you to mix multiple tracks at once! You get a familiar mixer design with 12 motorized faders, touch sensitive encoder knobs and illuminated buttons. The faders are extremely smooth to move and provide the perfect amount of resistance, allowing subtle adjustments. The console’s controls can be used for functions including pan, solo, mute, dynamics, EQ, plug‑in parameters and more. Each channel strip LCD displays meters, panning, track name and more. An HDMI output gives you instant graphic feedback for all channels, bus and effects from the desktop console.

Connections

Computer Interface

USB Type‑C.

Ethernet

Ethernet supports 10/100/1000 BaseT.

HDMI Video Output

1 x HDMI Type A.

Updates and Configuration

1 x USB Type‑C for software configuration and software updates.

Software

Internal software upgrade via updater application.

Settings Control

Fairlight Studio and Console setup utility software when connected by USB.

Power Requirements

Power Supply

Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.

Power Usage

20W max.

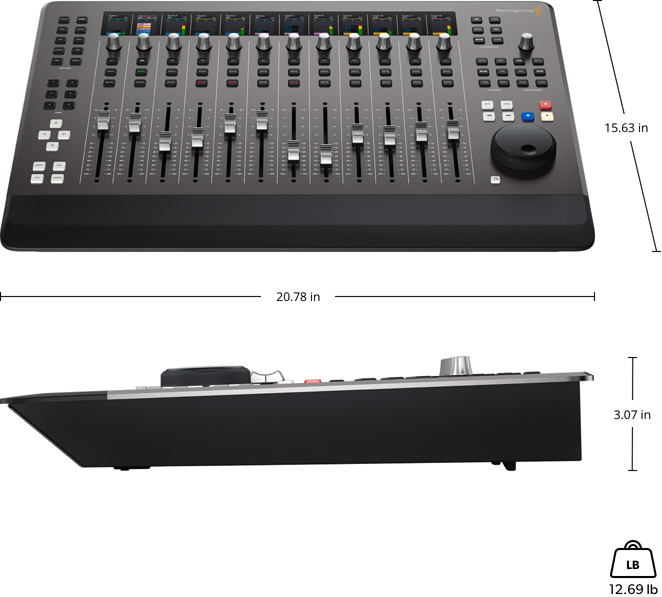

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Fairlight Desktop Console

1.5m USB‑C Cable.

Warranty

1 Year Limited Manufacturer's Warranty.
